How is a Barcode Generated?

Every trip through a grocery checkout lane, retail boutique, or logistics warehouse relies on a silent marvel of modern commerce: the optical barcode. Long before lasers and digital image sensors scanned packages in milliseconds, retail business was an exhaustive, manual ordeal. Shopkeepers and stock clerks logged merchandise counts by hand on paper ledgers, managed warehouse stock through paper punch cards, individually stamped price tags on every container, and tallied customer totals on mechanical calculators. These cumbersome practices consumed extraordinary amounts of labor and opened wide vulnerabilities to human error and undetected shoplifting.

Today, automated optical identification eliminates those frictions. By converting numerical strings into alternating patterns of dark bars and pale spaces, a barcode turns a physical item into an instantaneously readable data point. Behind these ubiquitous black-and-white stripes lies an internationally standardized framework governed by strict mathematical formatting, coordinated global numbering bodies, and decades of engineering evolution.

Pioneers and Milestones in Barcode History

The transformation of retail inventory from manual ledgers to computerized optical scanning did not happen overnight. It began with an overheard problem, moved through theoretical patent drafts, and waited two decades for computing hardware to catch up with the inventors' vision.

Bernard Silver

• Role: Co-inventor of the barcode
• Inspiration: Extended Morse code patterns into vertical stripes
• Patent Period: Late 1940s to early 1950s

While studying at the Drexel Institute of Technology, Bernard Silver overheard a conversation between a local grocery executive and a university dean regarding the retail industry's desperate need for an automated checkout system. Silver recognized the vast commercial implications of solving this operational bottleneck. Choosing to walk away from his standard academic path, he threw his energy into developing an operational identification system that could eliminate the tedious manual entry of customer transactions.

Norman Joseph Woodland

• Role: Co-inventor of the barcode
• Design Concept: Translating sound-based telegraph patterns into optical lines
• Patent Period: Late 1940s to early 1950s

Teaming up with Silver, Norman Joseph Woodland helped build the core conceptual framework for optical product encoding. Woodland drew inspiration from the dots and dashes of Morse code, realizing that if he pulled those familiar signals downward, they would form parallel lines of varying thicknesses. Together, the two inventors secured the foundational patents for the technology between the late 1940s and the 1950s, setting the structural baseline for all modern retail scanning.

Troy, Ohio

• Significance: Location of the world's first commercial retail barcode scan
• Date: June 26, 1974
• First Scanned Product: A single pack of Wrigley’s chewing gum

Although Silver and Woodland established the barcode's optical principles in the 1950s, adoption was delayed for years. Businesses, manufacturers, and computer hardware developers did not yet possess the microprocessing power or operational scanning software needed to make daily retail implementation viable. That technological gap finally closed in the early 1970s. On June 26, 1974, a supermarket in Troy, Ohio made commercial history by scanning the first retail item at a live point of sale: a pack of Wrigley’s gum, officially opening the modern era of automated global shopping.

The familiar vertical stripes of modern commerce began as Morse code dots and dashes stretched downward into an optical language.

The Mathematical Architecture of a Barcode

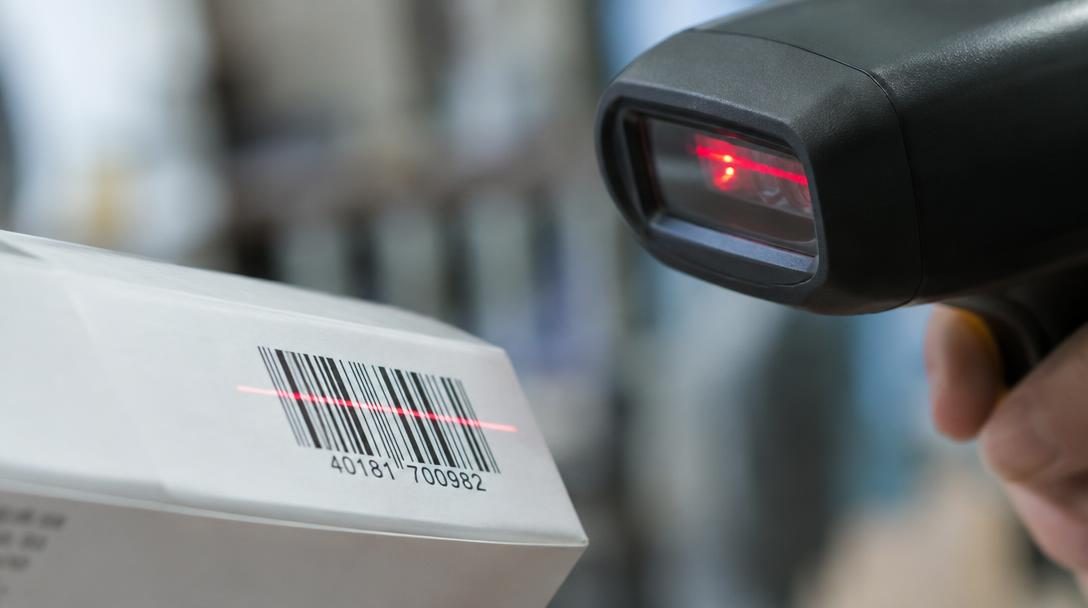

At its core, a standard linear barcode is an optical translator that represents numeric characters as machine-readable patterns. Scanners do not read the numbers printed along the bottom; instead, they capture the reflection of light bouncing off the alternating dark bars and light spaces. In a classic linear code, each individual bar and space represents a numeric digit ranging between 0 and 9.

Every standard retail linear barcode consists of exactly 95 blocks of code. These 95 individual segments are divided systematically into guard patterns, manufacturer codes, product indicators, and error-checking check digits. The uniform division of these 95 blocks ensures that scanners can read the sequence accurately whether the item is scanned forward, upside down, or at an angle.

As the volume of manufactured products expanded across international markets, the requirement for unique Universal Product Codes (UPCs) grew alongside it. Consequently, barcode structures have become longer over time, accommodating broader sequences of numbers while preserving the underlying optical balance of dark and light segments.

Global Standards and the GS1 Framework

A barcode cannot function in global commerce without a centralized system to prevent conflicting numbers. If two different manufacturers assigned the identical series of digits to an article of clothing and a carton of milk, supermarket checkout systems and distribution networks would collapse into disarray.

To prevent duplicate codes, international commerce relies on GS1, a dedicated not-for-profit standards organization. With more than 2 million active member companies, GS1 administers a strictly managed numbering system that assigns unique commercial prefixes to every registered business. When a company registers with GS1, it receives an authorized identification number that forms the foundational prefix for all its product UPCs.

GS1 Prefix Range	Designated Country Origin	Administrative Purpose
100 through 139	United States	Exclusive national allocation for US commercial registrations
500 through 509	United Kingdom	Exclusive national allocation for UK commercial registrations
754 through 755	Canada	Exclusive national allocation for Canadian commercial registrations

Beyond country identification, the 95 blocks inside a standard barcode contain designated sequences reserved for specific industry sectors. Specialized digit allocations allow warehouse and checkout scanners to quickly separate food items, pharmaceuticals, and general merchandise. This deep level of granularity allows retailers to distinguish between virtually identical goods. In a display of ice cream tubs, for instance, every distinct flavor receives its own unique UPC, allowing store owners to track which flavor is outperforming others and automate restocking without manual audits.

From Linear Stripes to Two-Dimensional QR Codes

While the traditional 95-block linear barcode remains the standard for physical retail checkouts, the nature of data capture expanded dramatically in the late 1990s with the emergence of the QR code. Although built on different visual rules, the QR code is still fundamentally a barcode.

Unlike linear barcodes that rely on a single horizontal row of parallel lines, QR codes are two-dimensional matrices composed of modular squares arranged on a grid. This dimensional expansion exponentially increases data capacity. Rather than encoding only a basic string of numerical digits from 0 to 9, a two-dimensional grid can store complex URLs, deep-link directories, and alphanumeric payloads.

Modern consumers interact with QR codes daily through smartphone cameras. Commercial applications include accessing interactive restaurant menus, reviewing live retail inventory, watching promotional product videos, and facilitating contactless, cashless payments. While linear barcodes remain optimal for high-speed conveyor belts and grocery registers, QR codes serve as the primary bridge connecting physical items to digital web environments.

How to Generate and Deploy a Barcode in Six Steps

Creating and implementing an operational barcode requires following a precise sequence of technical and organizational procedures. Whether operating a multinational enterprise or managing a home-based boutique, businesses must execute each step carefully to prevent inventory disruptions.

1. Determine your registration requirements: Decide whether your products are entering mainstream retail distribution or staying within private systems. If you only need to manage internal warehouse stock or track equipment, you can generate internal barcodes without outside registration. If you plan to sell through commercial retail channels, you must register externally.
2. Acquire official GS1 identification numbers: Apply directly to the GS1 organization to receive an authorized company prefix. Depending on where your enterprise is registered, you will be allocated an official geographic range, such as 100–139 for the United States, 754–755 for Canada, or 500–509 for the United Kingdom.
3. Input granular product specifications: Assign a distinct UPC to every single item variation in your catalog. Never lump variants together; assign separate unique numeric strings to different sizes, packaging formats, and flavors—such as individual variations of ice cream—to ensure clean inventory records.
4. Select the correct optical format: Match the format to your distribution goal. Choose a traditional 95-block linear barcode for product packaging intended for retail checkout counters. Choose a two-dimensional QR code built on a square grid if your objective is linking mobile users to online inventory or digital resources.
5. Generate the graphic file using modern software: Input your registered numerical string or digital URL into dedicated barcode generation software. The software automatically calculates the necessary check digits and configures the exact optical width of the dark bars and pale spaces to match global specifications.
6. Print, place, and test the physical code: Output the graphic onto your packaging materials or adhesive labels. Before launching full distribution, run physical tests using retail laser scanners and smartphone cameras to ensure the symbol scans instantly and resolves to the correct product entry.

Costly Implementation Mistakes to Avoid

While modern software makes the generation of optical patterns fast and accessible, minor oversights during design or printing can render a barcode completely unreadable. Retailers and manufacturers should guard against several frequent errors:

• Using unregistered numbers in retail channels: Generating random numbers on unauthorized software might work for private asset tracking, but attempting to introduce unregistered barcodes into commercial retail supply chains creates severe conflicts. An unregistered sequence can easily duplicate an authentic UPC assigned to another manufacturer.
• Failing to differentiate product variants: Treating product variations as a single inventory unit cripples supply chain visibility. If every flavor of an ice cream brand carries the same barcode, inventory software cannot track which flavor is selling out and which is lingering on the shelf, costing retailers thousands in lost sales and overstock waste.
• Distorting the optical dimensions: Modern linear scanners depend on reading the precise spatial proportions across all 95 blocks of code. Manually stretching, squashing, or cropping a barcode graphic to squeeze it onto a package distorts the relative widths of the bars and spaces, making it unreadable to standard optical hardware.
• Ignoring surface glare and low optical contrast: Barcode scanners operate on optical reflection, requiring sharp contrast between dark bars and light backgrounds. Printing barcodes on glossy, metallic, or transparent surfaces creates glare that blinds scanner sensors. Similarly, printing dark bars over dark packaging eliminates the contrast needed to identify individual segments.
• Selecting the wrong format for the task: Linear barcodes are engineered for compact numerical strings and fast scanning at point-of-sale registers. Forcing a linear barcode to hold complex digital instructions is impractical; tasks like directing shoppers to mobile landing pages, customer menus, or brand videos require the two-dimensional architecture of a QR code.

Strategic Considerations for Growing Businesses

A barcode strategy should not just solve immediate packaging needs; it must accommodate long-term operational growth. As businesses expand their product lines, their inventory tracking systems must scale seamlessly without requiring complete re-engineering.

Because barcode lengths have expanded over time to keep pace with global consumer commerce, companies must estimate their future code requirements carefully. Purchasing an insufficient allocation of numbers from GS1 can force a growing brand to acquire disjointed prefixes later, making back-end enterprise resource planning more complicated. Mapping out expected product launches, sub-brands, and size variations in advance keeps internal inventory organized.

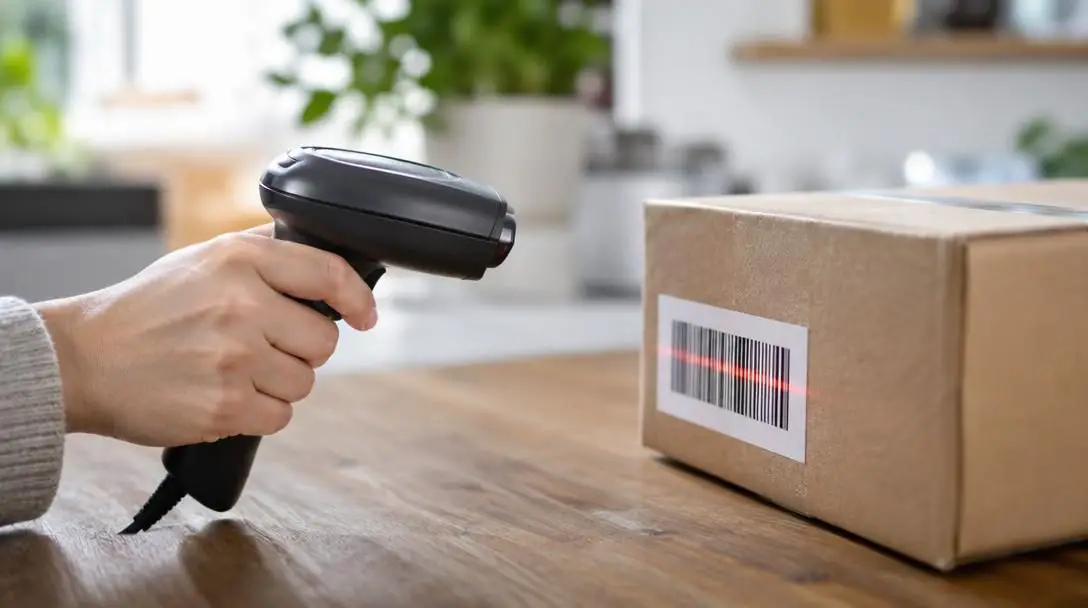

Furthermore, the democratization of scanning hardware has created major advantages for smaller businesses. Entrepreneurs working from home or managing independent shops no longer need to invest in expensive industrial optical rigs. Modern smartphone cameras can read both traditional linear barcodes and two-dimensional QR codes directly, enabling low-cost inventory management right from a mobile device.

Finally, enterprises expanding abroad must design packaging that complies with global category standards. This means ensuring that country-level GS1 prefixes—such as the ranges for the United States (100–139), Canada (754–755), and the United Kingdom (500–509)—are paired correctly with regulated industry blocks, particularly when managing regulated categories like food products and pharmaceuticals.

Frequently asked questions

Can I generate a free barcode for my retail product?

You can generate free internal barcodes for private warehouse tracking or home asset management, but products sold in commercial retail marketplaces require official UPCs licensed through GS1 to ensure no duplicate numbers exist worldwide.

Why did barcodes take so long to appear after being invented?

Bernard Silver and Norman Joseph Woodland patented the technology in the late 1940s and 1950s, but retail adoption stalled because the computer software and optical processing systems of that era were not advanced enough for daily commercial use until the 1970s.

How many segments or blocks make up a standard barcode?

A standard retail linear barcode consists of exactly 95 blocks of code, which encompass the start and stop guard patterns, manufacturer data, specific item identification numbers, and error-checking check digits.

What is the difference between a UPC barcode and a QR code?

A standard UPC barcode is a linear, one-dimensional arrangement of parallel lines representing digits between 0 and 9, primarily used for product identification at checkout. A QR code is a two-dimensional grid of squares capable of holding much larger data payloads, such as website URLs and mobile interactive menus.

Why does each product flavor or size need its own barcode?

Assigning a distinct barcode to each variant, such as different flavors of ice cream, allows retailers to track inventory at the individual SKU level, see which products are selling fastest, and manage automated restocking without error.

The bottom line

The barcode transformed modern commerce by replacing slow, error-prone manual bookkeeping with an elegant optical language. From Bernard Silver and Norman Joseph Woodland’s Morse-code-inspired sketches to the landmark 1974 pack of chewing gum in Troy, Ohio, the technology has evolved into a global economic bedrock. Whether generating standard 95-block linear barcodes through GS1 or deploying two-dimensional QR codes for mobile customer engagement, understanding the mathematics and standards behind optical scanning ensures smooth retail operations, precise inventory control, and frictionless transactions worldwide.
